| Rear weight bracket-fits
John Deere 318, 322,332,420, 430 garden tractors and the new style
316 with the Onan engine only. Does not fit 316's built in 1978. The
weight bracket will hold 7 John Deere suitcase weights and weighs
approximately 20 lbs. You can use your hitch with this bracket
mounted. The bracket mounts quickly with 2 bolts. Includes the
mounting hardware and instructions. No drilled holes are needed for
installation. $140 |
 |
 |
| |
|
 |
Our Tractor suitcase weights are 41
lbs each. (also come in black) If you want your tractor to do
the work you want it to do, you need traction. Adding the
tractor weights give you that needed traction.
They also work great for garden tractor pulling.
Suitcase weights are $40 each. |
The 70 lb. cast iron wheel weights
are another way to get the traction you need. I personally use
wheel weights, suitcase weights, and fluid in the tires for my own
garden tractors and for
garden tractor pulling. Check
out the page on
the Bird and the
blog on the John Deere 140 to check
out these tractors.
These also are available in Black.
. Wheel weights are $150 a pair. |
Questions, comments, or ready
to buy? Call: 1-800-618-8738 or
e-mail
jim@jimsrepairjimstractors.com |
| |

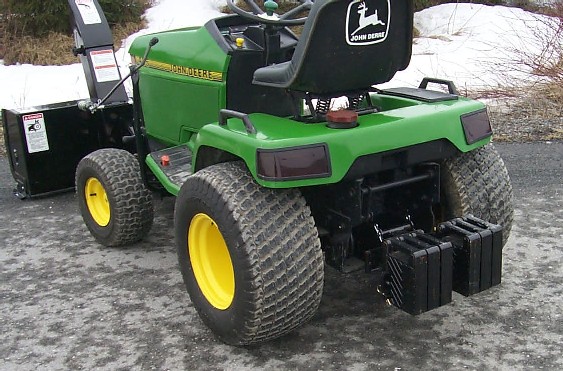

Bercomac rear weights and
weight bracket
|
 700240-Universal
model
700246-Husqvarna model
700441-John Deere model
700444-MTD Tractor models equipped with quick hitch bolts.
|

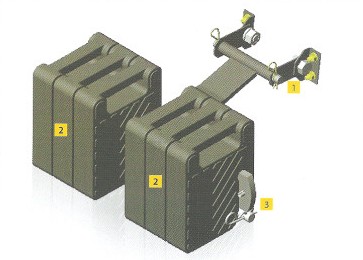

 1.
The brackets bolts to the rear of the tractor.
2. Package of 6 weights
that are 25 lbs each.
3. Locked into place with a pin. |
Tractor Weight Questions and Answers:
|
Q: I own a 1999 22hp
Troybuilt garden tractor model 809 and was wondering if there is any advantage
to adding weight to the rear end for snowblowing (2 stage 200 plus lb blower)
since its a single wheel variable speed driven machine and I clear a drive
that slopes quite a bit. Last year I had chains on the 23 x 9.50 x 12 Carlise
turf tires and was stuck more often than I care to admit. I bought Duro Ag
tires for this tractor already and have ordered wheel weights of 100lb. to add
to the Ags and wonder if I'm "spinning" my wheels in expecting more
performance from this tractor than I should be in that it just might be more
weight I need to pull out of a drift by hand that I'm stuck in. Any advice on
how/if I can get better performance in snowblowing use from this machine
without major modifications?
A: No, you do not have
enough weight on your tractor. Yes having weight on the rear gives you the
advantage of the leverage on the rear which decreases the front end weight and
that transfers to the rear wheels. You can put my universal suitcase bracket
on the rear of the rear axle and the six suitcase weights at 25 pounds each,
and that will give you an approximate 200 pounds of the rear axle. With this
style of weight you can easily decrease weight in 25 pound increments.
Q: I need to get some
weight for my X595 when using the FEL. How much weight should I have when
moving dirt, mulch, etc.? The tractor came with a weight bucket (part of the
FEL package). I have the rear tires filled. I’m wondering if your suitcase
weights will fit in the weight bucket? Or, am I better off getting a weight
bracket for the rear and hang the weights on that. Do you carry a bracket for
the X series? I believe John Deere’s is a “Click and Go” or something like
that.
A: You can just hang
your suitcase weights on the weight box and put some in the box. You wouldn’t
need to buy a weight bracket. Yes, I have the suitcase weights in stock. I
think I have the click and go also here in stock.
Q: I have a 2210
John Deere, I was wondering if I could install your 70# weights on
the inside of my wheels.
A: Yes, if
you have 12” wheels these will bolt right onto your rear wheels.
Q: I have a Wheel Horse 312 - 8 Speed tractor that I primarily
use for snow removal. I have both a 42" blower and a 42" plow blade
for it. I currently have one 50# wheel weight in each rear wheel. I
have Carlisle Turf Master tires on all 4 which have been awesome for
traction (without chains). I mostly plow on concrete or blacktop.
The only problem I am having is with the front wheels sliding when
plowing with the blade angled. I would like to add some weight up
front to help with this.
Do you know of anyone who may have something that would work for
me to add some front weight? I do have 6 weight plates which are
about 20# each. I could just fabricate a bracket to use those. Any
idea how much weight would be needed for this?
A: I welded
some neat brackets on the side of my push blade for that same reason
and hung four John Deere suitcase weights at 41 pounds each. At 160
pounds sometimes I still wished I had
more.
Q: I have a 4 wheel drive X748 diesel lawn mower with a 62”
deck. 85% of my mowing is on hillsides so my objective is to make
the tractor have the lowest center of gravity as possible to reduce
rollover. My mower weighs 1113 lbs standard. So far I’ve filled with
liquid and added 50 lb weights to each of the 26x12x12 rear tires. I
have added two 43 lb suitcase weights to the front bumper. What
would your recommendations be? How much weight did the liquid fill
provide? Should I add on the 30 lb weights to each front tire? I see
some talk about adding 140 lbs to each rear tire. Can I do that with
this mower? How much weight to the front would I add to balance out
the tractor if I did that?
A: The rear
tires will hold about 11 gallons each if they were filled full. That
is about 90 pounds on each wheel. You also can remove the rear
wheels and turn them around and you will come up with a much wider
track. That will help your center of gravity. I would put 140 pounds
of weight on each rear wheel along with the rear tires filled with
liquid. I would not fill the front tires as it is not worth messing
with for the little bit of weight you will get out of it. Instead
put more suitcase weights onto your front bumper. If you do all of
the above you will be as safe as you can get to go up and down the
slopes at any angle you would want to go.
Q: I'm looking at adding weight to the rear of my John Deere
317. Will your suit case bracket fit? Also I've pondered if the
hydro system would be able to support a log splitter?
A: Yes my
weight bracket will fit on the rear of your John Deere 317. Yes your
tractor is tough enough to take care of a log splitter.
Q: I just bought a
Cub Cadet GT 2544 heavy duty, shaft
drive, cast Iron tranny, garden tractor. I am looking to plow my
driveway with it. I have a black top driveway and other than chains,
(I am afraid they will tear up the black top) I am interested in
other ways to improve my traction. I just ordered a set of Carlisle
Tru Power AG tires for the rear and was wondering about putting
fluid in them? I have had mixed responses... some say that it will
damage my hydro drive and others say because I have the heavy duty
cast Iron hydro transmission that it would be no problem. Could I
have your opinion? Would Liquid in the tires for added traction hurt
my brand new tractor? I have heard that rotating weight, carrying
inertia, is bad for a hydro setup.... Also.. I need suitcase weights
and a bracket to hold them. I’m looking for the brackets and for the
weights, would you be able to Help me? Do you have anything that
would fit my Tractor?
A: Yes
putting weight on any tractor is always a little harder on it, but
think about it, you sure didn't pay all that money for the big
ponies to sit there and watch your wheels spin. My opinion is to get
some weight on it and get her nailed to the ground and tell her it's
time to go to work for you. Yes, I would fill the tires with liquid,
and not the calcium chloride. Use windshield washer fluid. Mount
suitcase weights on the rear and then you can get by without chains.
I do agree with you, I don't like chains either and do not use them,
I just add a little more weight. I have a universal suitcase weight
bracket and 6 suitcase weights that weigh 25 lbs each, that comes up
with a total figure of over 150 lbs. This will bolt on to the rear
of your tractor.
Back to top
Q: Do you think there is any benefit in putting tire chains on
the front
of a 2 wheel drive garden tractor for plowing snow, or would adding
weight to
the front be a better idea? The tire size is 16 x 7.50 x 8 and they
are turf type tires.
The problem is the front tires want to slide to follow the
blade angle. The rear wheel traction is not a problem as the tractor
weighs
around 1,100 lbs and I use about 240 lbs of weight on the back. I
think part of the problem is that the rear mounted weight box is
unloading some of the weight off the front wheels. Also the snow
plow
frame attaches to the rear axle so there is no weight applied to the
front end.
A: What I
have done in this situation is to build a suitcase bracket up in
front beside the front push blade and hang 4 suitcase weights on it.
That worked very well.
Q: Do you have a suitcase weight bracket for the rear of a JD
445?
A: Yes, we
also have the rear suitcase brackets made for the John Deere 445
garden tractor. This will take the weights put on forward or
backwards, therefore coming up with the correct traction that you
would need.
Q: I have a 317 John Deere and have been thinking of a rear
weight bracket and some suitcase weights. The tractor has a plow and
a snowblower, turf tires with 1 wheel weight on each side, and
chains. I would like to use the plow most of the time until the snow
gets to heavy. It sounds like I should fill the tires with
windshield washer fluid.
How many suitcase weights should I hang off the back with the plow?
How many with the snowblower?
Do you have a rear bracket for the JD 317?
A: The nice
thing about weights on the rear is that 1 pound on the rear puts
about 1 1/3 pound on the wheels and also decreases the front end
weight. The John Deere 317 is known for hard steering and lighter
front end will take care of that problem. Put 5 suitcase weights on
the rear and use all 5 for snowblowing and when using the front
blade. I have a suitcase weight bracket I manufactured for the JD
317's.
Q: I am interested in tractor wheel weights. I have 12 inch rear
wheels on a Case model 222 garden tractor.
A: Yes, I
have wheel weights that will fit right on your Case wheels. I have
it set up so you can even put 2 70 lb wheel weights on the left side
and 2 70 lb wheel weights on the right side.
Q: I have a John Deere
445 garden tractor with a
3 point hitch that I purchased from
you a couple of years ago. Your site mentioned a suitcase bracket
that might work with out removing the 3 point. Does it fit my
tractor and, if so, how much is it. Are the suitcase weights harder
on the tractor axles than the wheel weights or are they strong
enough that it is not a consideration. Doesn't fluid in the wheels
rust your rims?
So I would be able to have the suitcase weight bar and weights in
place and also use my rear blade at the same time?
A: Yes, I have a suitcase weight bracket for you 3 point
hitch. I use the alcohol based fluid not the salt based water. No,
you can have only one subject hooked to your 3 point hitch at a
time.
Back to top
Q: I am looking to get some wheel weights for a John Deere X595.
It has 26x12x12 wheels. You have indicated in your Q/A that your
70lb weights have a bolt spacing of 8.75 inches, but are out-to-out
of 11.25 inches. My wheels are about 10 inches clear on the inside
and the bolt spacing is about 8.5. I am surprised that your weights
are 11.25 inches in diameter. Is this correct and if so, do you have
any similar weights that would fit an X595 or know where I could get
them?
A: My 70 lb
wheel weights will fit onto any 12" wheel. We also have chains to
fit your size tire.
Q: Why would suitcase weights be better than wheel
weights?
A: The
suitcase weights can be better because when you put 1 pound of
weight on the back or rear of your tractor it puts about 1 1/3
pounds of down pressure on the rear axle and also decreases the
front end weight.
Q: Can you tell me what the approximate dimensions are on your
suitcase weights?
Do your rear wheel weights fit completely inside the wheel or do
they hang out like the plastic sand filled ones? Could you tell me
the outside diameter and total width?
A: The
suitcase weight is 9" high and 11" from front to rear. They are 2
1/2" wide or thick. The nice thing about cast iron is they do not
take up a lot of room for each pound. My 70 lb cast iron wheel
weights are thinner weights than the big 50 lb plastic concrete
ones. The 70 lb cast iron wheel weights are 11" X 3 1/2".
Q: Is the
Cub Cadet 2521 two wheel drive
tractor going to handle moving snow on a 45 degree driveway or do I
need a four wheel drive?
A: Be sure
to get enough weight on your tractor and it will climb a mountain
side. With plenty of weight it will do the job.
Q: Can I put liquid (anti-freeze, Windex etc.) in the wheels of
my John Deere 445 for weight or should I use Wheel weights? Both?
A: For weight
I would suggest that you fill your tires with liquid. That is not
enough all by itself. I then would also go with a rear suitcase
bracket. This suitcase bracket will take 7 suitcase weights. The big
advantage of weights on the rear is that every pound of weight on
the rear of the tractor puts about 1 1/3 pounds on the rear axle and
decreases the weight on the front axle. As you may know, the front
axle is always overweight.
Q: Could you please advise the dimensions of the cast iron wheel
weights you sell - specifically:
Outside diameter
Thickness
Bolt hole center-to-center distance (diagonal).
A: The 70 lb
cast iron wheel weights are 8 3/4" center to center bolt hole. The
outside diameter of the wheel weight is 11 1/4".
Q: I noticed on your website that you talk about adding weight
to a
tractor to help its performance.
How do I know how much weight to add? I have a 2000 John Deere 445
garden tractor. I have a blade and a snow blower. This last snow
that we had, I used the blade because I am missing a small part for
the snow blower. I felt that I should have added some weight to the
tractor even though the manual states that none is needed with the
blade. I did get stuck twice because the rear tires could not get
traction.
Should I use suitcase weights or get weights for the rear tires? I
am also interested in a set of bar tires and was thinking of filling
them with fluid for weight. Any thoughts?
A: If I were you the first thing to do
is fill the tires with liquid, (I use windshield washer fluid, it's
easier on your iron wheels). It's nice to have the extra weight year
round. The weight on the rear with the suitcase weights is the next
thing to do as weight hanging on the rear decreases the weight on
the front axle and applies it to the rear axle. I have a suitcase
weight bracket in stock that is better than the John Deere bracket.
The John Deere bracket only holds 6 suitcase weights and the one I
have holds 7 suitcase weights. But the biggest difference in mine is
that it is manufactured so the suitcase weights can be put in the
bracket facing forward or facing backwards and the extra weight
gives you still more traction. The weight bracket is for the tractor
without a 3 point hitch. I would suggest getting 6 suitcase
weights for you application.
I also have the suitcase bracket for the 3 point hitch. This bracket
only holds 6 suitcase weights.
Q: Jim, In regard to adding
weight to a
garden tractor, you said you use
windshield washer fluid. Do you need an inner tube also? How do you
add it and how much?
A: No, I do not like inner tubes. I break the bead on the
valve stem side of the wheel. Lay it flat on the floor and fill it
up until it runs over with liquid. Then take and air up the tire and
the bead should seal up. Do not put much air in the tire.
Q: I have a
John Deere 318 garden tractor that
I want to add anti freeze to the tires as you suggested.
Approximately what amount should I put in each of the rear tires and
do you recommend putting it in the front tires as well and how much?
A: Each rear tire will hold about 9 gallons and I usually mix
it 50/50. I do not see any reason to put the liquid in the front
wheels, they do not hold much so I don't think it's worth messing
with.
Back to top |
 Site
Map
Tractor Weight - Tractor Weight Bracket
|
Toll Free: 1-800-618-8738 *Free
outdoor
equipment tech support
