$5600 |
One of a kind and top
of the line! This Bercomac 2 stage ATV snowblower 's 15”
impeller has 4 blades that throws snow to amazing distances- This
ATV snowblower is specifically designed for ATV's where you would prefer the
control saddle with the snowblower controls at your finger tips.
For even more size and price choices check
out the models specifically designed for -
Four wheelers -
and
Utility Vehicles. Those models have
the controls mounted on the dash. New this winter is a
72" model snowblower attachment
"The Prestige" Snowblower - 2 STAGE
54”wide - Model #700360 - Includes a
powerful 23 HP (not 13 HP) Kohler engine.
|
|
ATV Snowblower Questions and Answers |
 |
The snowblower is
directly lifted by the ATV's winch. It's saw
tooth auger just devours any type of snow - It's powered by a
dependable oil bath worm gear box completely mounted on ball and
cone bearings.
Weighs 395 lbs and is supported by it's own pneumatic castor wheels.
Your ATV frame does not have to support the snowblower. The Mounting is
adjustable from 72" to 110". Longer vehicles will need the subframe
extension kit 700475
for lengths from 115.75'' to 148.75''
Click to enlarge |
 ATV Snowblower Video |
|
 |

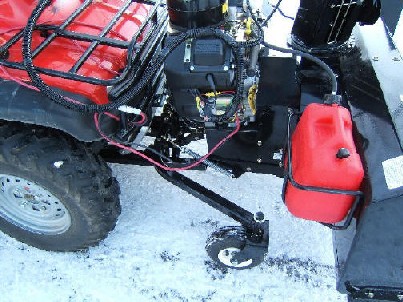

To keep the snow
moving, the snowthrower has a 23 HP
Kohler engine equipped with a de-icing kit to keep if from icing up.
Compare that with any of the others!
|
 |
Everything is
controlled from this saddle. The
driver must be seated to engage the snowblower. This saddle includes
the ignition, choke, throttle, electric PTO, safety switch,
electric chute rotation, and chute
deflector. |
|
|
1: PTO Switch
2: Ignition Switch
3: Switch (chute)
4: Throttle Control
5: Switch (chute)
6: Choke Control
7: Safety Switch
|
The winch switch
control raises and lowers the snowblower.
The switches on the saddle turn the chute and raise or
lower the deflector. You can turn the spout from the
saddle.
Engage the snowblower when the engine is running at medium RPM by
pulling the PTO switch.
The electrical system is already installed
and connected to the snowblower components. |

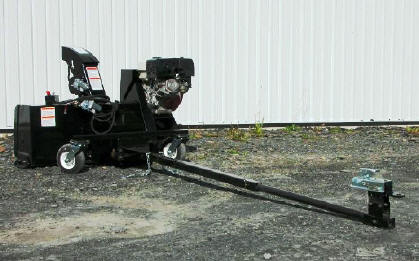

The 54" wide Prestige model
700360-7 has been revamped and has an improved hitch system. It uses the same
hitch system the new
4 wheeler snow thrower,
the
utility vehicle snow blower,
and
72" snowblower attachment uses.
Quickly and easily connects with the 1 7/8 inch hitch to the 1 7/8 inch ball
on your machine.
The option 700475 extends subframe
from 115.75'' to 148.75'' for longer vehicles.
Check out the:
Utility vehicle 60 inch power broom
for ATV's
and UTV's
Questions, comments, or ready to buy? Call:
1-800-618-8738 or e-mail
jim@jimsrepairjimstractors.com |
| |
|
|
Q:
I am considering numerous snow removal options for my retirement home. I have
a single lane gravel road about 6000 ft long to plow. One pass each way should
clear the road. My question is with a 500 cc 4x4 ATV with automatic
transmission, how fast can I remove snow in terms of speed? We rarely get a
snow fall over 10 inches and most seem be 6" or less at any given time. I do
not have a ATV yet so I would be willing to invest a little more to get a
bigger ATV if needed, but reading your responses to other inquiries it appears
that even a medium size ATV will suffice.
A:
You are correct, it does not take much of an ATV to move
the snowblower as the snow is being removed in front of it, not pushed out of
the way. The ATV with an automatic transmission like the Polaris ATVs work
very nice. With those lighter snows it sounds like you could travel up to 5
mph.
Q:
Can the ATV snowblower be disconnected easily so my ATV is free to use around
my farm for other jobs?
A:
These all have the new style hitch package so you can
quickly hook and unhook the snowblower off your ATV. This means you do not
have to buy a belly bracket.
Q:
Does your ATV snow blower have electric start? Please give
dimensions of snow blower width, length, height and weight. I want
to make sure I can store ATV and attached snowblower in a shed.
Will snow blower attach to Kawasaki 650 4x4 Prairie; do I need the
added attachment?
A: Yes, our
ATV snowblower has electric start and a good charging system. It has
a 54 inch wide cut. The length is 11 feet mounted on a Polaris 700
Sportsman. The height is around 4 feet. The weight is 400-500
pounds. You will need a winch mounted on the
front. I can also supply this for you if you want.
Q: You seem to sell the only two stage blower I found. Will the
chute adjust down to throw the snow not as far? I live in town and
don't want to break windows. Eighty feet throw is a long ways for
town use.
A: Yes, all
you do is push the electric button and it will blow the snow right
beside you on either side. In other words, it put the snow where you
want it all at our fingertips.
Q: How much snow will it handle at a time as the
drifts do get out of hand sometimes and get a little deep? Will it
handle compact snow and ice? How close to the ground does it pick up
snow as one of the problems with plows is the amount of snow left on
the ground can build up with repeated snowfalls and get almost
impassable with the right conditions.
A: I have
already sold these snowblowers to cities for commercial use. This
machine will handle drifts taller than the machine's drift cutters
that are already up pretty high. Yes, it will handle hard snow as
there are alligator teeth on the front auger. We have adjustable
skid shoes for you to adjust how high off the ground you would want
to clear the snow. You can adjust it from 0" to 2 1/2 " high.
Q: I have two Kawasaki Prairie 650's 2003. Do I need a battery for the blower to start the motor or do I
hook in the wiring to my electric plow lift plug, or is your blower
a complete unit that just needs it controls put on the seat and you
start it from there?
A: Included with the snowblower is a special quick tatch wire harness that hooks to your ATV battery. Also the
snowblower engine has a charging system so your ATV’s battery will
always keep fully charged. The saddle that is included with the
snowblower lays right on your ATV seat has all the controls right at
your finger tips.
Q: I am thinking about buying a ATV instead of a tractor with a
mounted snow blower, simple because since I have no lawn I can use
the ATV for fun as well, my question is what would be the best type
of ATV, engine size?, 4 x 4 drive?, by the way Honda has a power
steering ATV. keep in mind I do want to use this as a multi use ATV.
A: Our
snowblower hardly puts any weight on the front end so power steering
would not be an issue, but of course power steering is nice anytime.
I have some customers that bought my snowblower and put it on a 2
wheel drive ATV and it manages it okay. It does not take much
horsepower to push this snowblower around. So just buy the machine
you would like the best and I know it would work fine on any you
would get ahold of. It would be good if you go an automatic
transmission or either one with a real low 1st gear.
Q: Does a 4 wheeler come with a PTO shaft and 3 point hitch?
A: For my
snowblower that goes on the ATV you do not need a 3 point hitch and
it also does not need a live PTO because the 2 stage snowblower has
its own big 23 horsepower engine mounted on it.
Back to top
Q: I have a Polaris 500 It now has a snow plow on it. What
else do I need to mount this blower? Do I need a winch bracket or
the whole winch set up? Can I do this my self or do I need some one
to install it for me? I put my own winch on. Does it have detailed
instructions?
A: Yes, you
can put these items on yourself with the instructions that are
included. You can also give me a call and I will help you through
any questions or problems you might have. Isn't your winch already
mounted on your ATV because you already have a snow plow?
Q: I am interested in the snowblower attachment for my 4
wheeler. How does the snowblower effect the turning of the 4 wheeler
and is it difficult to back up?
How much weight is on the front of the 4 wheeler?
A: Your 4
wheeler will turn very easily to the left or the right because my
pneumatic tires are on casters and turn in any direction. You can
also back up easily because the caster wheels just turn around and
follow you in any direction you travel. We have adjustable springs
so you can put only 20 lbs of weight on the front end of your 4
wheeler or you can adjust the springs to get 300 lbs of weight and
get more traction. You are in control of whatever weight you want or
do not want.
Q: I had a
different make and model ATV snow blower than yours with a 13 hp
engine, and after a year I was disappointed. Number one, it didn't
throw the snow very far and the biggest concern was it looked like
the front end of my ATV was pulled down. Will your snow blower act
and perform better? I have a 2005 Polaris 500 HO with a front winch
system.
A: The Berco
snowblower does not pull down the front of your ATV. We have
adjustable springs so you can adjust it with most any pull down
pressure you would want on your front end. This Berco will throw
snow a long way, about 80 feet. You will never need to play any more
snow relay games. Standard with the Berco blower is full electrical
control of you spout to turn it. You have full control of the the
spout deflector just by pushing an electric button. The drift
cutters are standard equipment. The pneumatic tires are mounted on
casters and work well for turning corners, you do not have to skid
the machine side ways. We have the power to get the job done the
first time.
Q: I was looking at the snowblower for the 4 wheeler. Are the
wheels adjustable so that you can use it on gravel?
A: No, you do
not adjust the snow cutting height with the winch, instead, you
adjust those heavy duty shoes way down low. That will raise the
cutting head to miss picking up rocks.
Q: How cold of temperatures will the ATV snow blower handle? (it
will be used in temps as low as -45 F). What kind of maintenance
does it require?
A: The ATV
blower has a special exhaust warmer that heats up the intake air
before it enter the carburetor so the carburetor won't shut down
because of freeze up. The only maintenance parts you might need are
shear pins if you hit a foreign object. It's a good thing to break
the shear pins and not the snowblower itself. I also stock parts and
you can call me toll free 1-800-618-8738.
Q: What is the snow blower's warranty? Is there a service manual
with part numbers and schematics?
We would need this product for steep, uneven, unpaved, surfaces.
Any problems pushing it up hills attached to a Honda Foreman 450es?
What about snow depth? Will it handle 2 to 3 feet of snow? Will it
clear snow that has settled and become hard packed? What about
eating away at piles of snow left from plows?
Is it up to the task of our latest Colorado mountain snow?
A: The
snowblower has a 1 year warrantee. Yes, there is a parts manual and
some shear pins that come standard with your new package. I have
already sold some of these snowblowers that were put on only 2 wheel
drive 4 wheelers and they managed fine. If you are in rough ground
or gravel just adjust the skid shoes in the lower position to raise
the cutting edge of the snowblower. Yes, the blower will remove the
hard pack snow and also clean up snow plow snow that gets in your
way. We have sold quite a few of these blowers this year to
customers in Colorado.
Back to top
Q: I am curious if the 54" snow blower will attach to the front end
of a Kawasaki Mule 4X4 utility ATV?
A: Yes, I
have already sold them to customers that owned a utility ATV or UTV. You would need to have a winch mounted on the front of
your machine to raise and lower the snowblower.
Q: I live in what most folks would say is a very primitive area.
The 3.5 mile road in and out is rough to say the least. I currently
have a tractor with a PTO attached blower but the extreme winter
conditions here are rough on the tractor, diesel jelling etc. Is the
ATV blower protected with shear pins similar to the 3pt blowers? I'm
looking to get a more reliable method to keep my road open.
A: Our big 23
horsepower V-twin engine is set up for extra cold conditions with a
built in intake air warmer to fully eliminate the carburetor engine
freeze up. Yes, this snowblower is built with shear pins at 3
different locations to almost eliminate damage to the snowblower. It
has heavy duty skid shoes that can be adjusted to a higher height to
pass over big stones or gravel. I already have them out in operation
in the conditions you are talking about.
Q: How well does a Honda Rubicon 500 maneuver with the snow
blower for the ATV it on there? Does the snow blower attach like a
snow plow does? How does it lift up
and down? By motor or by hand like a Plow? How hard are they to hook
onto a Honda Rubicon? I have a snow plow on it now. It has the
bracket under it that the two bolts hold it on. Is it the same type
hookup?
A: This Berco ATV snowblower is really something. It will
throw the snow about 80 feet. It has a big 23 horsepower V-Twin
overhead valve engine and has a wide 54" cut. It has a finger
electric button to turn the spout and tip the end of the spout up
and down. It will handle well with your ATV, I sold many of them
last year to the people up in the heavy snow country. A lot of them
had smaller ATVs than yours and they did the job fine.
My Berco snowblower is lifted up and down at just a push on the
electric button. It is lifted by a winch that is mounted on the
front of your ATV.
Q: Is the engine on the ATV snowblower very noisy?
A: This
engine runs very quiet as the muffler warms the intake air so as to
keep from having a carburetor freeze up problem.
Back to top
Q: Is there a larger version of this snowblower available for
the Yamaha Rhino side by side UTV?
A: Yes we
have a
UTV blower now.
Q: I have a 1997 Honda Foreman with a Cycle Country plow on it,
also a 1500# Superwinch. My questions are:
1. Would I need anything else to mount the thrower?
2. How big is the crate that this comes in?
3. Do you have them in stock or would I have to order one?
4. Does the unit have skids on it or does it rely on the winch to
keep it from eating the lawn?
I'd like to get it so it would be ready for next winter.
A: You would
not have to buy any other items. Yes, we currently have one in
stock. The crate is about 40"X40"X50". No my snowblower does not
have skids. It has 2 pneumatic tires which carry nearly all the load
and also these wheels are on a caster set up so you can turn a sharp
corner with ease. This is quite a machine with the big 23 horsepower
Kohler V-Twin engine.
Q: Jim, Your ATV mounted snowblowers look very appealing to me.
I do have a couple of questions, though. Does the added weight
overload the front end & if it does is there any way to compensate
for the weight? With the added front end weight is there any
traction loss? Lastly, How has the unit performed for your
customers? Any information you can provide is greatly appreciated.
A: This snowblower puts almost no
weight on the front of your ATV. The most weight on the front end
would be 50 lbs or less. Those 2 pneumatic tires carry nearly all
the load. We already have these mounted on ATV's with just rear
wheel drive and they even manage to get their job done fine with
rear drive only. This snowblower has a 23 horsepower engine too,
which is much larger than my competition. It also has the electric
spout that electrically tips up and down right at your fingertips.
We have many well satisfied customers as this unit can really throw
the snow. |
Back to Snow Removal
Back to top
 Site
Map
ATV Snowblower - Snowblower for your ATV
Bercomac Limited Warranty
|
Toll Free: 1-800-618-8738 *Free
outdoor
equipment tech support
