| Model

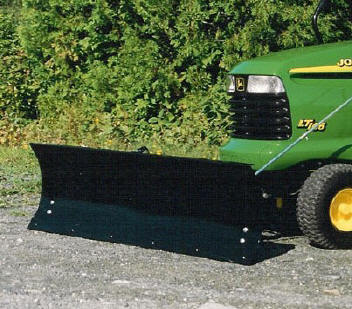

700266 Utility Blade - 48" or the Extra Heavy Duty 56"
Model 700416 |
A handle located on the left side of the driver allows to angle the
blade 20° to the left or right. The lift handle located on the right
of the driver allows to lift the blade easily. Turn it to unlock,
push or pull and turn to lock it into its angled position. This
blade is protected by a trip spring. If a solid object is hit the
blade will trip over it and return into its original position
avoiding damage to the blade or the tractor. 48" Blade is
priced at $300. It requires a quick hitch subframe kit priced at
$200 for the Compact model or $400 for the Deluxe model which can
also be used for the power broom and 2 stage snow blower.
The heavy duty 56" blade is equipped with a double trip spring
system and quadruple reinforcement on the back of the blade. $400.
This blade requires a quick hitch subframe priced at $600 that
can also be used for a power broom and a 2 stage snow blower. |
 Bercomac
Blade/Plow video clip |
Dimensions:
14" high x 48" wide. Made of 11 gauge steel with reinforcing angles
located at the back. |
Skid Shoes:
Help glide over all types of terrain. They are adjustable and and
can be replaced. |
Cutting
Edge:
The cutting edge or scraper bar is made of carbon steel. When worn,
it can be unbolted and flipped over for a double life span. |
48" blade
weighs approximately 85 lbs the 56" blade weighs approximately 105
lbs.
Weight of blade and subframe
Compact model: appx. 115 lbs - With Deluxe model: appx 158 lbs
|
| Dimension
14" x 48" or 14" x 56" |
| Warranty:
Residential: 1 year on parts and labor. |
Requires:
Subframe (mounting hitch)
Has a quick hitch system which allows the mounting, dismounting or
interchanging to other attachments on the same subframe such as
broom or snowblower. Two subframe models are available for this
blade.
Compact model is a mid-front-subframe which stays on tractor with no
interference with the mower deck (except on Toro HXL 1638 model).
Deluxe model is heavy duty long subframe which reinforces the
tractor’s frame by attaching it on the back and front of tractor’s
frame |
|
| This
blade fits on many different makes and models of tractors, Call or
e-mail Jim for more details on your tractor model. |
|
|
Back to Snow Removal |
|
| Ready
to buy? Call 1-800-618-8738 or e-mail
jim@jimsrepairjimstractors.com |
|
|
|
Q: If the 54” Bercomac blade is for the
John Deere 425 garden tractor will the 48” blade fit as well?
A:
No, the 54 inch blade is set up for the
hydraulic angle package.
Q: I have a new John Deere X520, do you
have a blade that would work?
A:
Yes, I have a big 48 inch Berco blade and
subframe to fit. My blade angle can be changed and adjusted right from the
driver's seat. I also have suitcase weights and snow chains available.
Q: Do you have a blade that
will fit a Case Ingersoll 116 YT?
A:
Yes, I have a big 48" blade with
angle and subframe that will fit the Case garden tractor.
Q: I just got a new John Deere 115 lawn tractor. Can you
recommend a Snow Plow for it?
A:
Yes we have a new Berco snow plow
that will fit right on your tractor, it is a nice wide 48" blade
with a subframe that is made for your tractor.
Q: Will your 48" Utility blade fit on a Husqvarna 48" 24
horsepower mower? If so, do you have any in stock?
A: I have the new subframe
and the 48" blade in stock that will fit your Husqvarna.
Q: Does the Bercomac 48" blade fit the John Deere LT 166? Do you
have the subframe for it? How difficult is it to attach the subframe
to the LT 166? I'm fairly mechanical. Does it require any drilling
etc? I assume it includes instructions?
A:
Yes, we have a subframe for that
tractor. You can quickly attach that 48" blade to the subframe, or a
rotary Broom, or a 40" 2 stage snowblower. You can also change the
angle of the blade right from the driver's seat. Yes, it includes
all the instructions. Usually these sub frame kits never require
drilling holes in the tractor.
Q: I have a
Cub Cadet garden tractor (1554) and
would like to know if the blade (model 700266 utility blade) will
fit this tractor and if not, can you recommend one?
A:
Yes, I have a package that will fit
right on your tractor. We have the subframe and the 48" blade.
Back to top
Q: I have a John Deere GT 225 tractor. I was wondering if you
make a snow blade with all the brackets? If so, how heavy is it and
how is it constructed? I would need all the mounting hardware.
A:
Yes we have the Berco front push
blades that are heavy duty for the heavier garden tractors. Our
blade is 48" wide and the sub frame kit is made to fit right onto
your GT225 tractor.
Q: I have a John Deere L130 lawn tractor, would you be able to
provide me with a blade (mainly for snow and gravel) that is lifted
with the mower deck handle? Does the mower deck have to be off while
the blade is on? Will I be able to add a snowblower?
A:
I have a nice blade that fits on your
tractor. It is 48" wide and connects up to your mower deck handle
lift and also has an angle control lever which can be operated from
the driver's seat with out getting off the tractor. It works
very well for loose gravel. Yes you have to take the deck off
when you are using the blade, you would not want the deck dragging
in the snow and hanging you up. The sub frame you use for the
blade will also accept a snowblower and the power broom.
Q: I have a John Deere GT262 that I recently purchased. Very
good tractor. I have decided to plow with it and am frustrated with
the solid 42" blade that came with it. The reason is the blade
digging in and stopping the forward motion suddenly instead of
skipping over an obstacle. Is there a John Deere Snow-Plow or blade
with Springs that will fit my model? Is this an item you might have
or what would you recommend?
Also, would you recommend any types of linear actuators to angle
the blade,
so I don't have to keep getting on and off?
A:
Yes, I have just the push
blade for you. It is made by Berco and is 48" wide. You can raise it
up and down with your mower deck lift lever. This blade also comes
standard with a lever within arms reach sitting in the driver's
seat, you can change the blade angle at any time without getting off
the tractor. It also has double springs so if you hit something
solid it will flex down forward just over the object and then jump
back up into position then be ready to go to work again. We have the
48" blade and subframe kit, new in the crate.
Q: Does the 48"
blade fit on a Cub Cadet 2544? Do you ship to Illinois?
A: Yes the 48" blade would fit on your and tractor and
yes we do ship to Illinois.
Q: I would like to know
if your Bercomac front blade plow will fit on a 212
John Deere lawn tractor? Also will
it go on the 317?
A: Yes the Bercomac
fits on the John Deere 317 and also on the John Deere 212 but the
lift linkage will not be correct to go on the 212. For the 212
you would have to remake the lift linkage for attaching a push
blade.
Q: I have a Simplicity Sunstar, but I don’t have a snow
plow for it. Does the Model 700266 UTILITY BLADE - 48" fit on it?
A: Sorry, Bercomac doesn't make a
kit for this tractor so it will not fit. |
